2017 Raleigh RXM Reynolds 631 Steel 56cm Rim 700c Cyclocross Bike Frame Carbon Fork New Old Stock


Includes: Headset, Rear Thru Axle and Front Thru Axle as pictured

I bought a semi of frames directly from Alta Cycling Group over 50 different models and sizes.

Frameset is new old stock, warranty replacement.



SPECIFICATIONS:

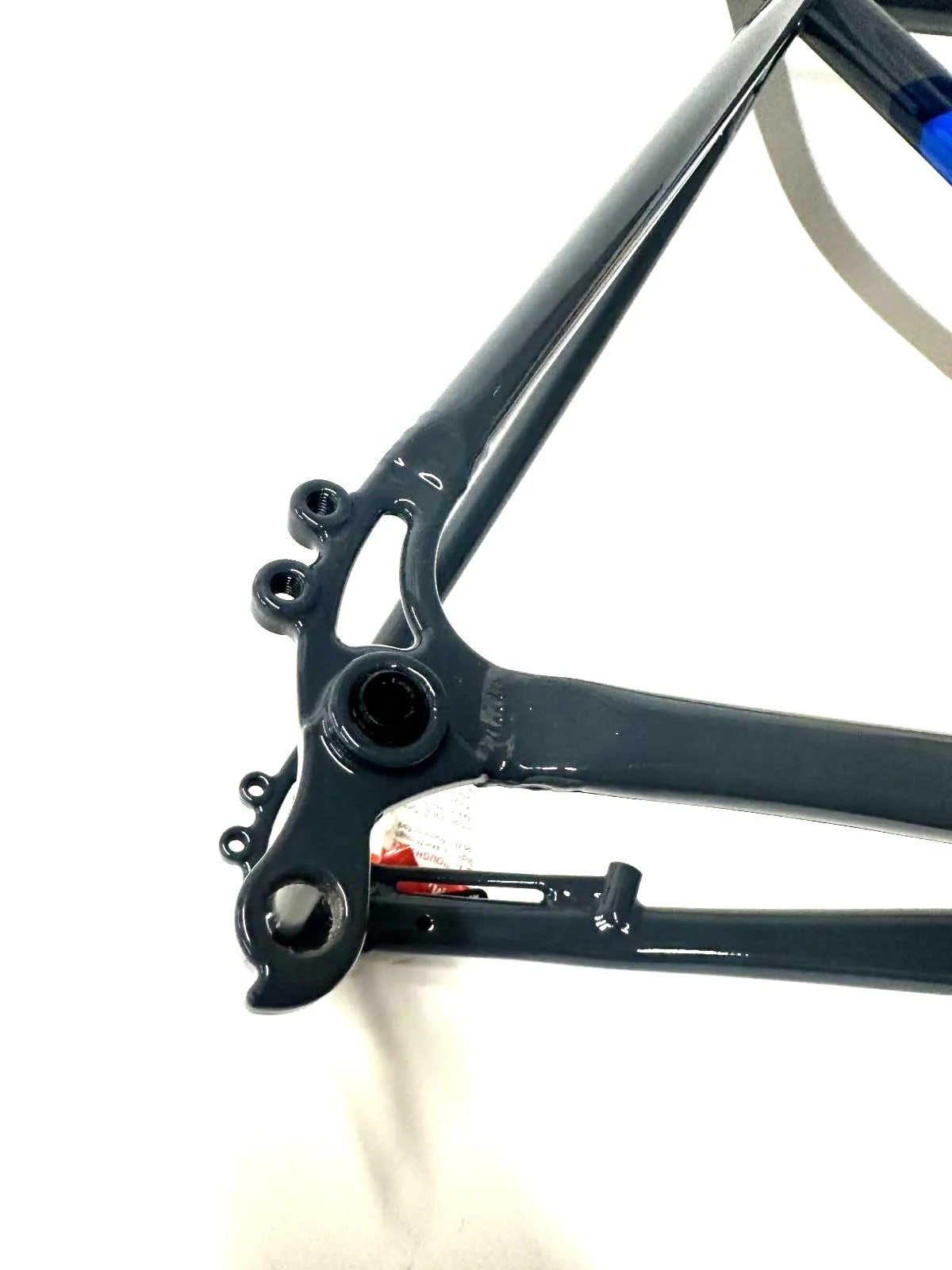

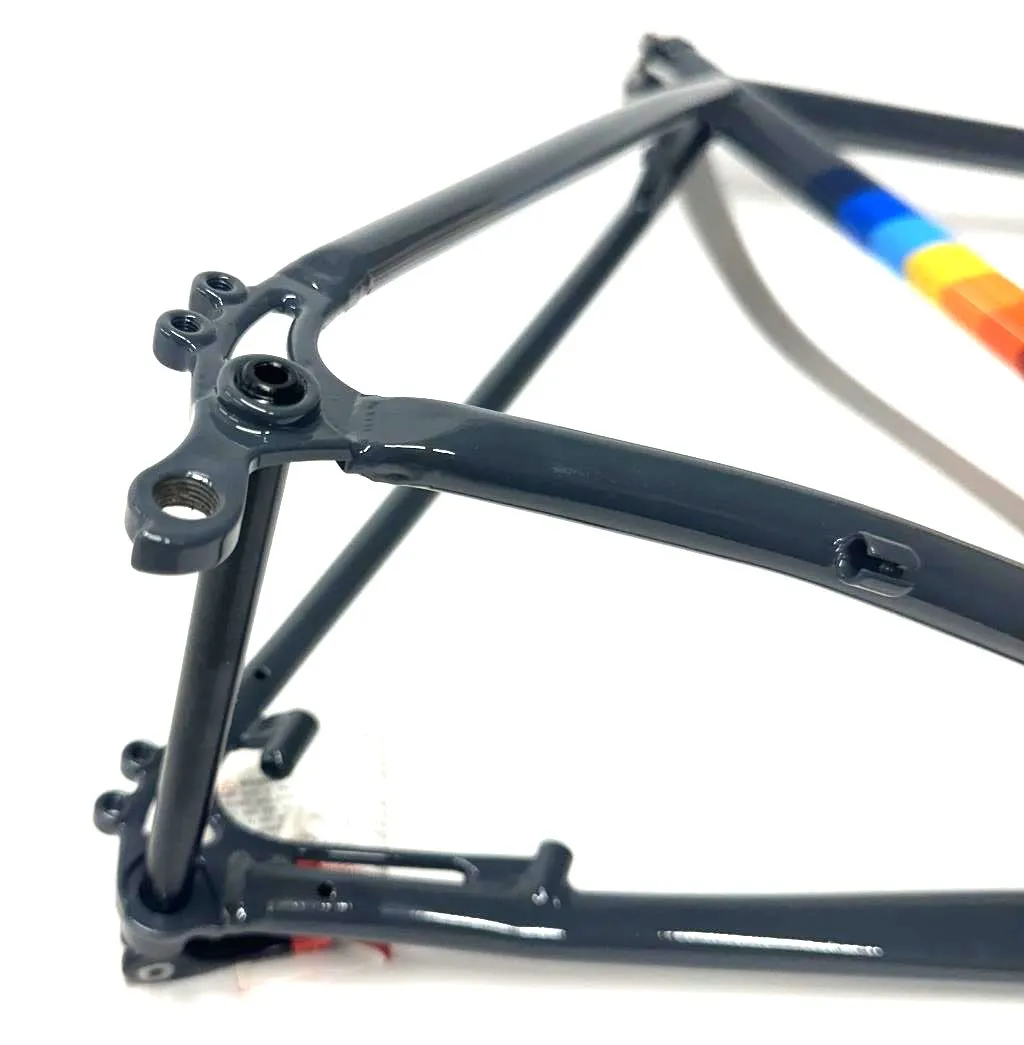

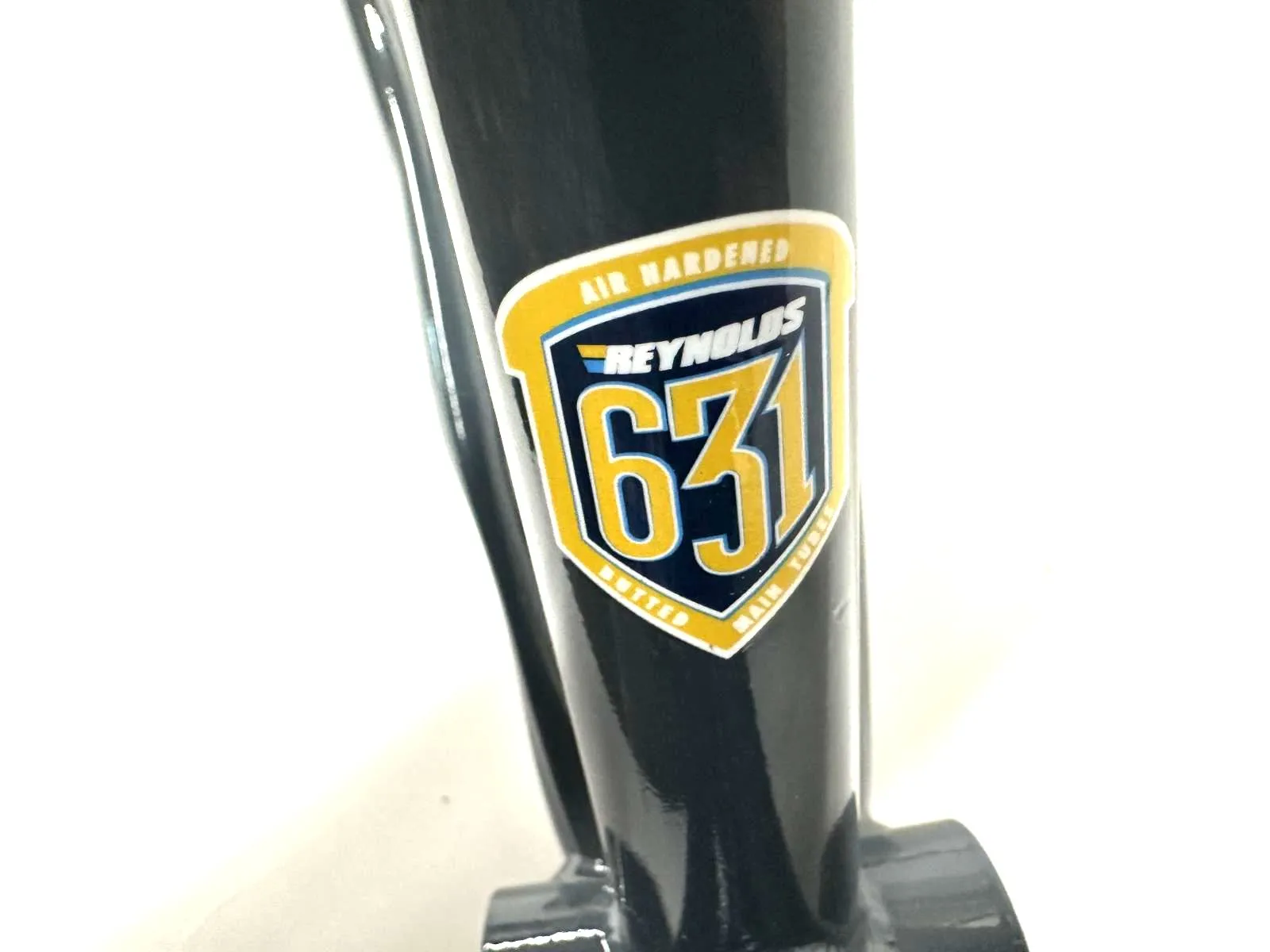

Frame: Reynolds 631 CROMO W/Post Mount Disc, 142x12mm Thru Axle,Tapered HT

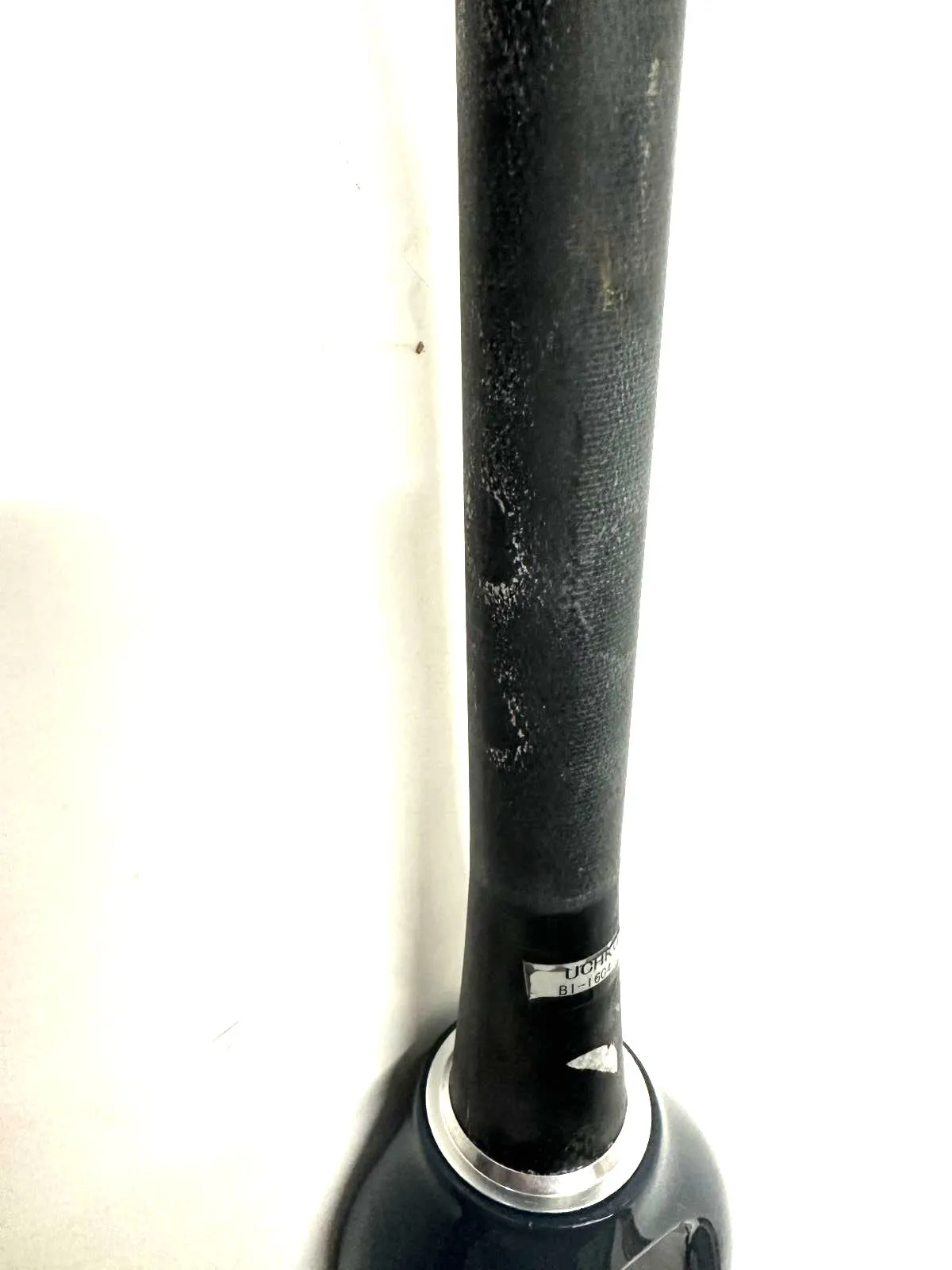

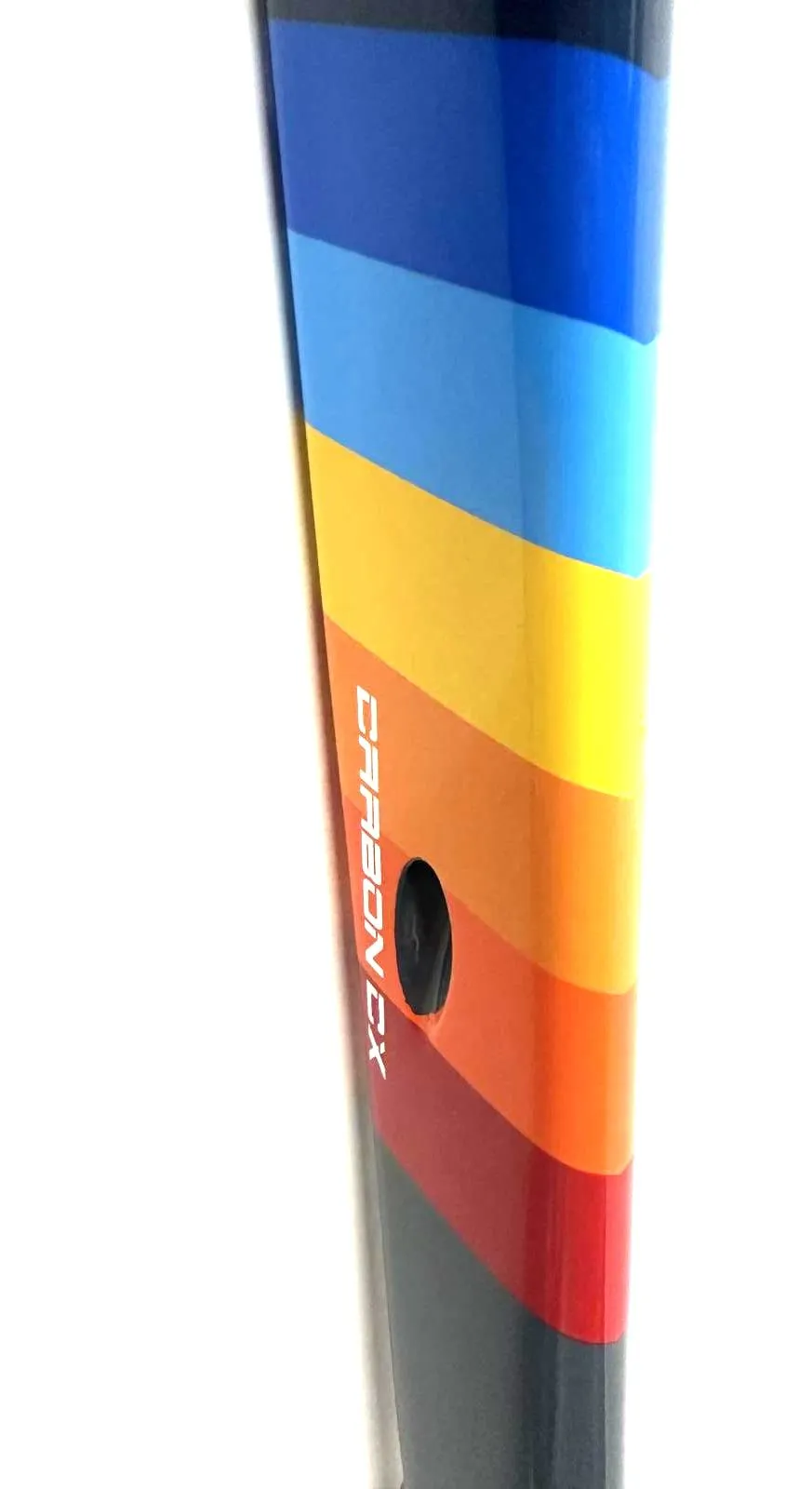

Fork:Raleigh Carbon Flat Mount Disc Cross Fork, Tapered 1-1/8" to 1.5", 15mm Thru Axle

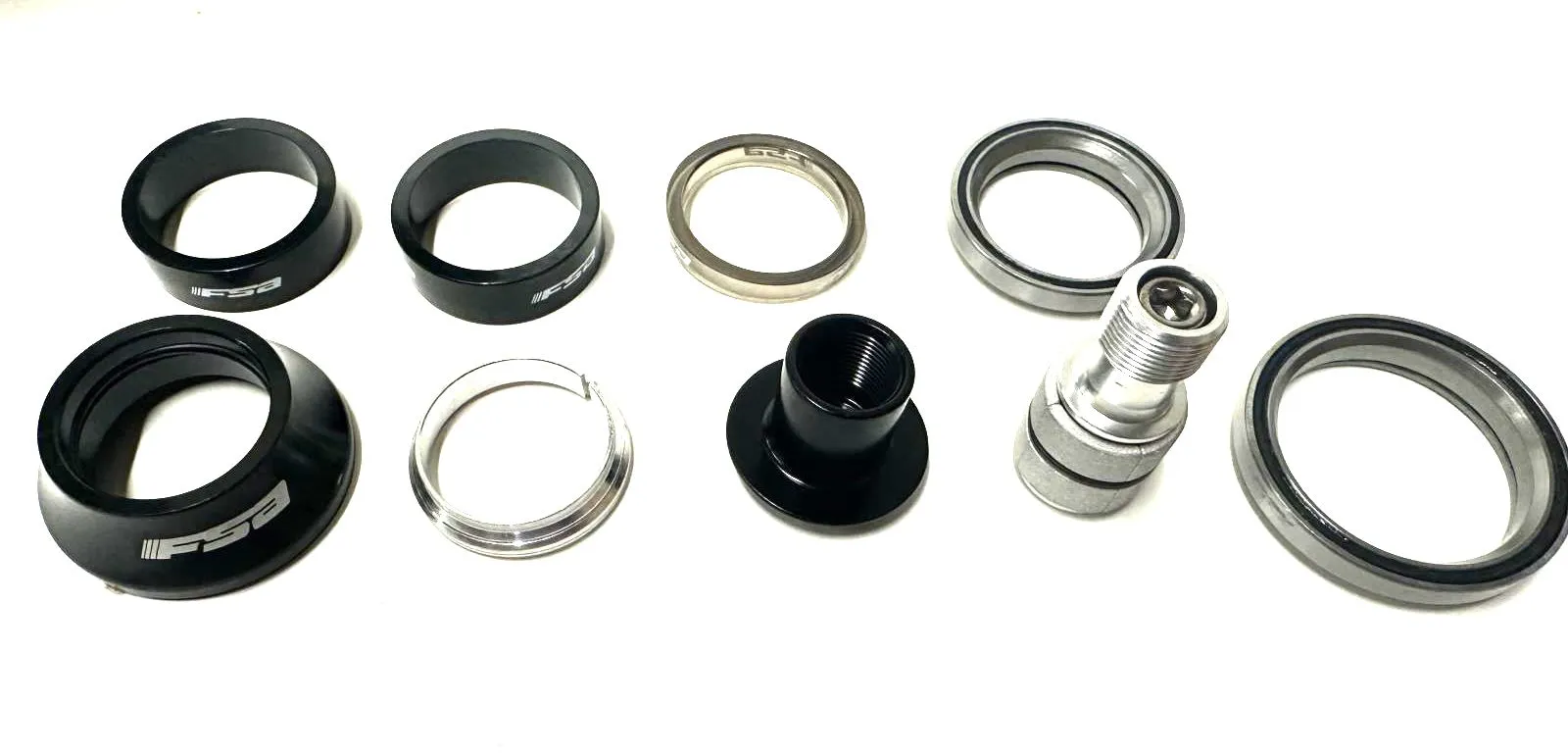

Head Tube: FSA Integrated Cartridge Bearings INCLUDED
Rear Thru Axle: 142mm spacing, 12mm x 155mm x 1.5 p, Rear Thru Axle INCLUDED

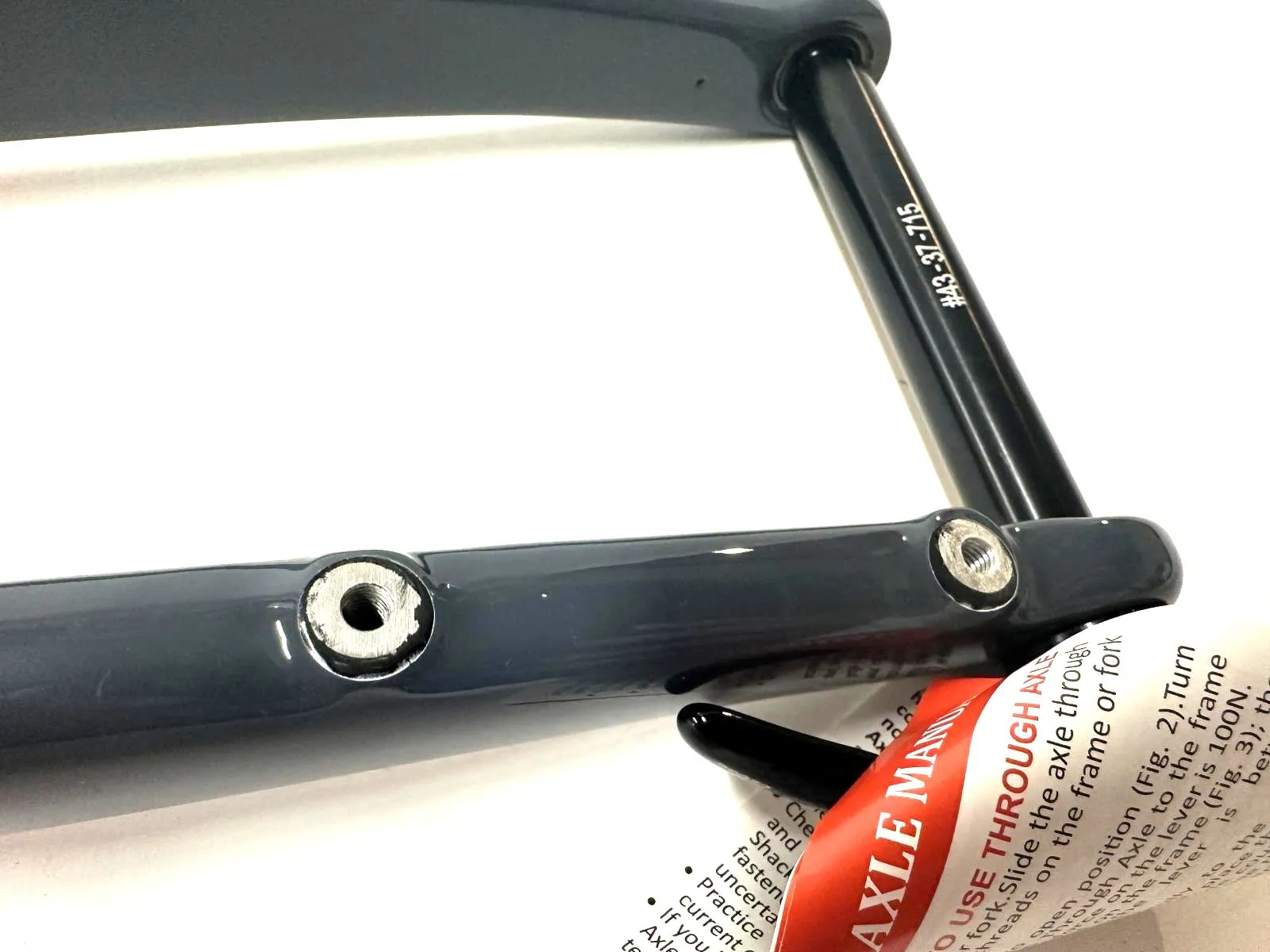

Front Thru Axle: 100mm spacing, 15mm x 125mm x 1.5 p, Front thru axle INCLUDED

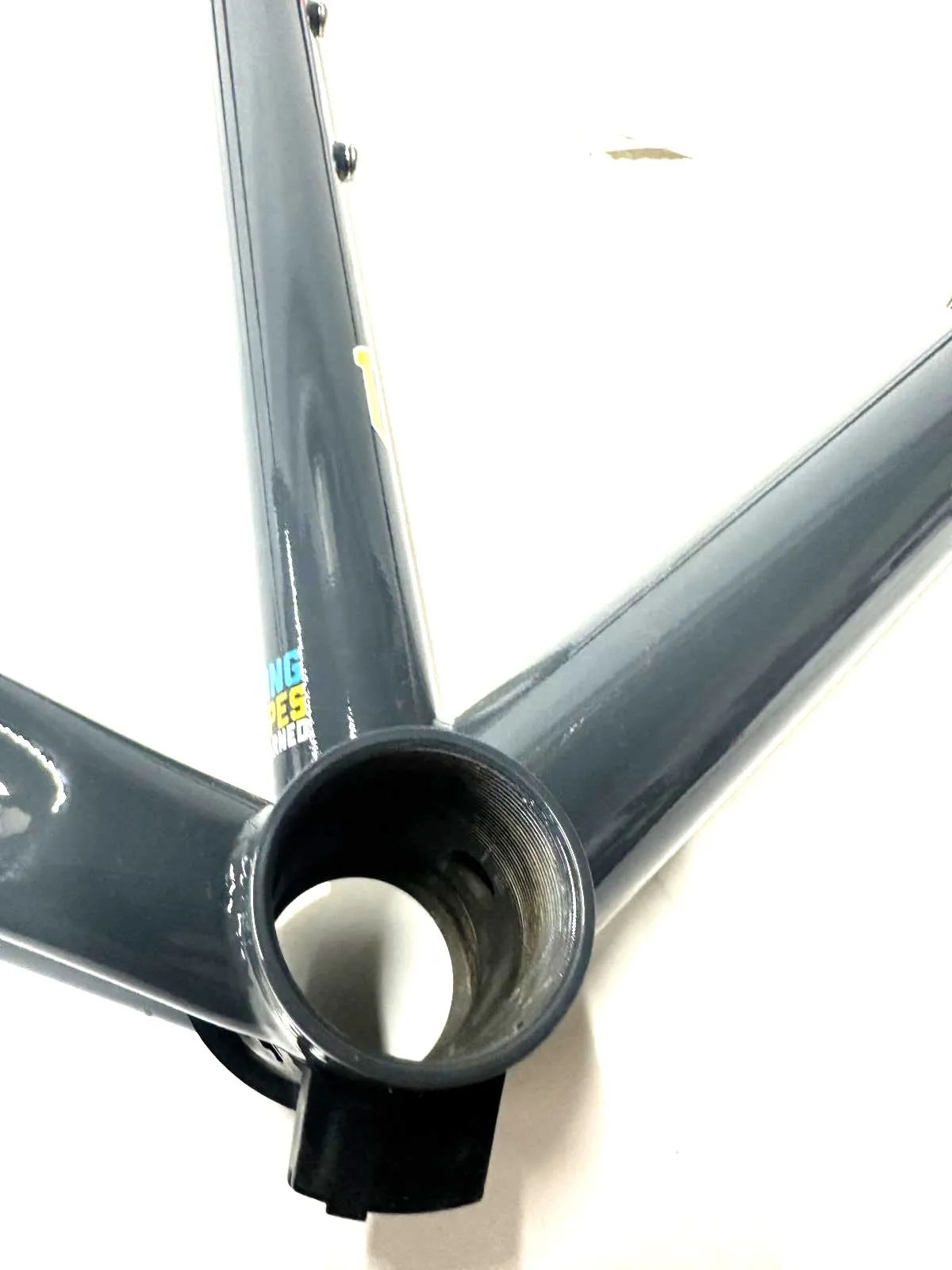

Bottom Bracket: 68mm THREADED Not Included
Seat Post Diameter: 27.2mm
Tire Width: 700x33c specs on bike.
Frame Weight: 2420g (Weight is based off a 54cm)
Fork Weight: 560g (Weight is based off a 54cm)

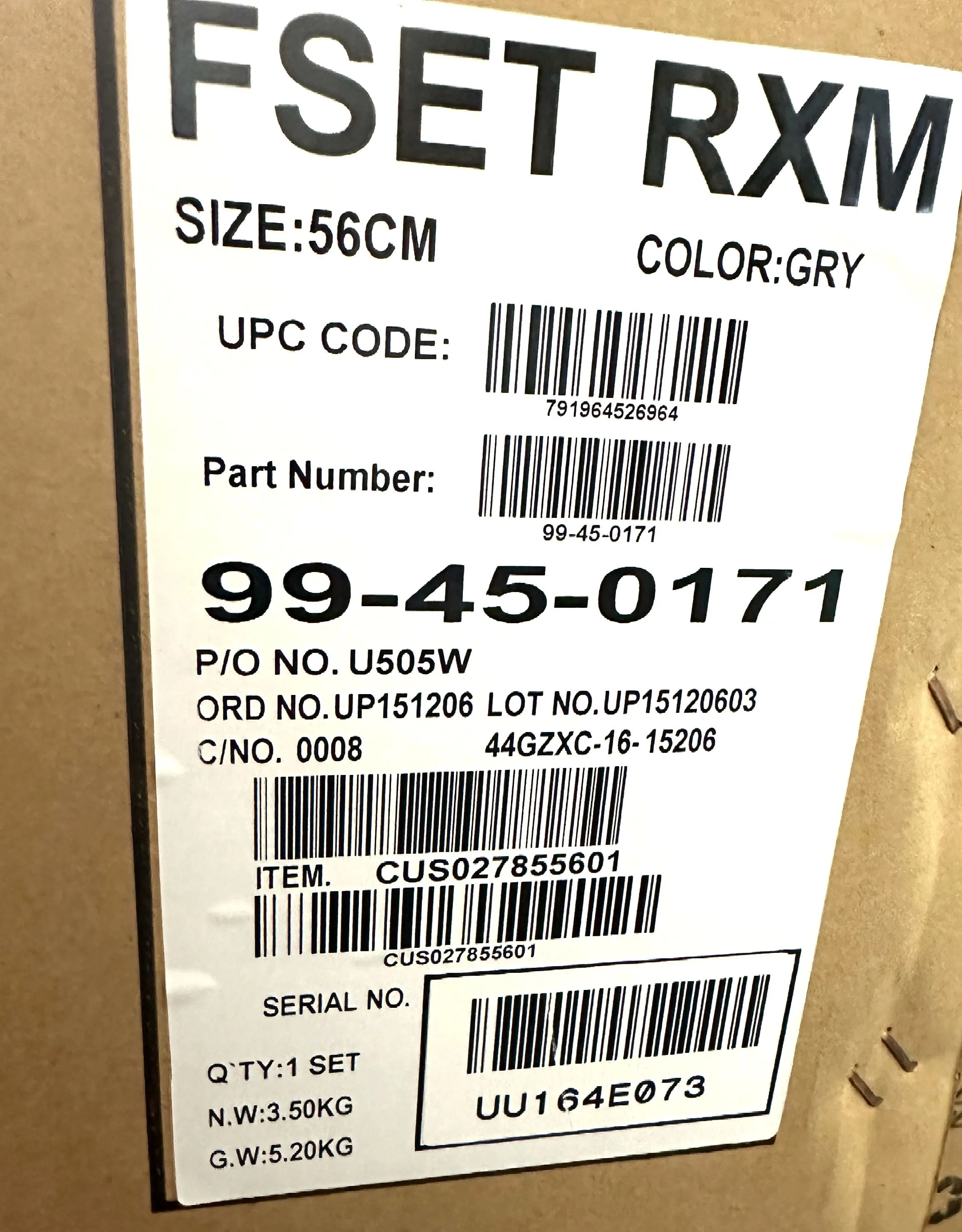

CONDITION: NEW OLD STOCK IN FACTORY BOX
INCLUDES: HEADSET

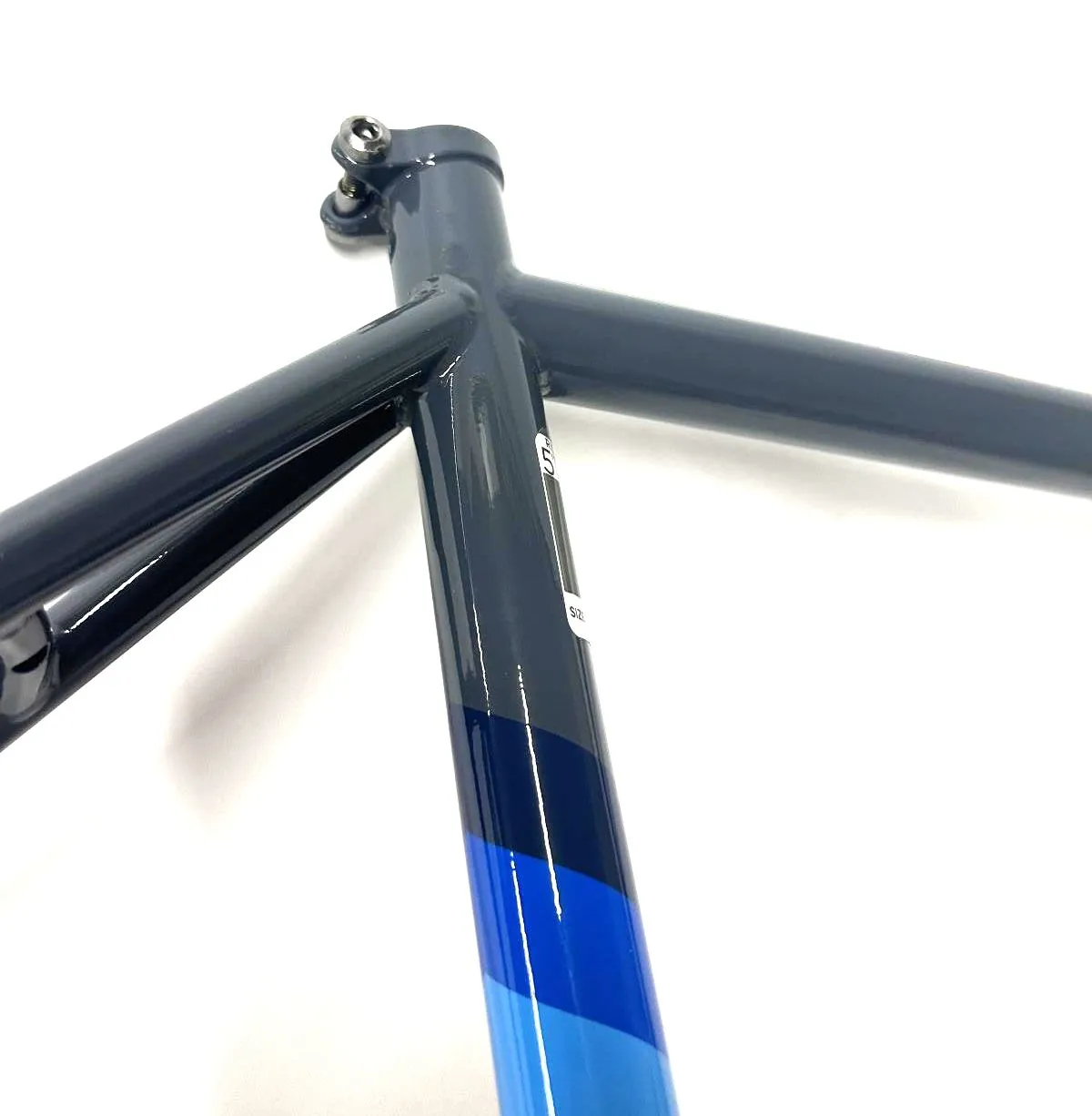

DOES INCLUDE: SEAT POST Binder Bolt
DOES NOT INCLUDE: SEAT POST

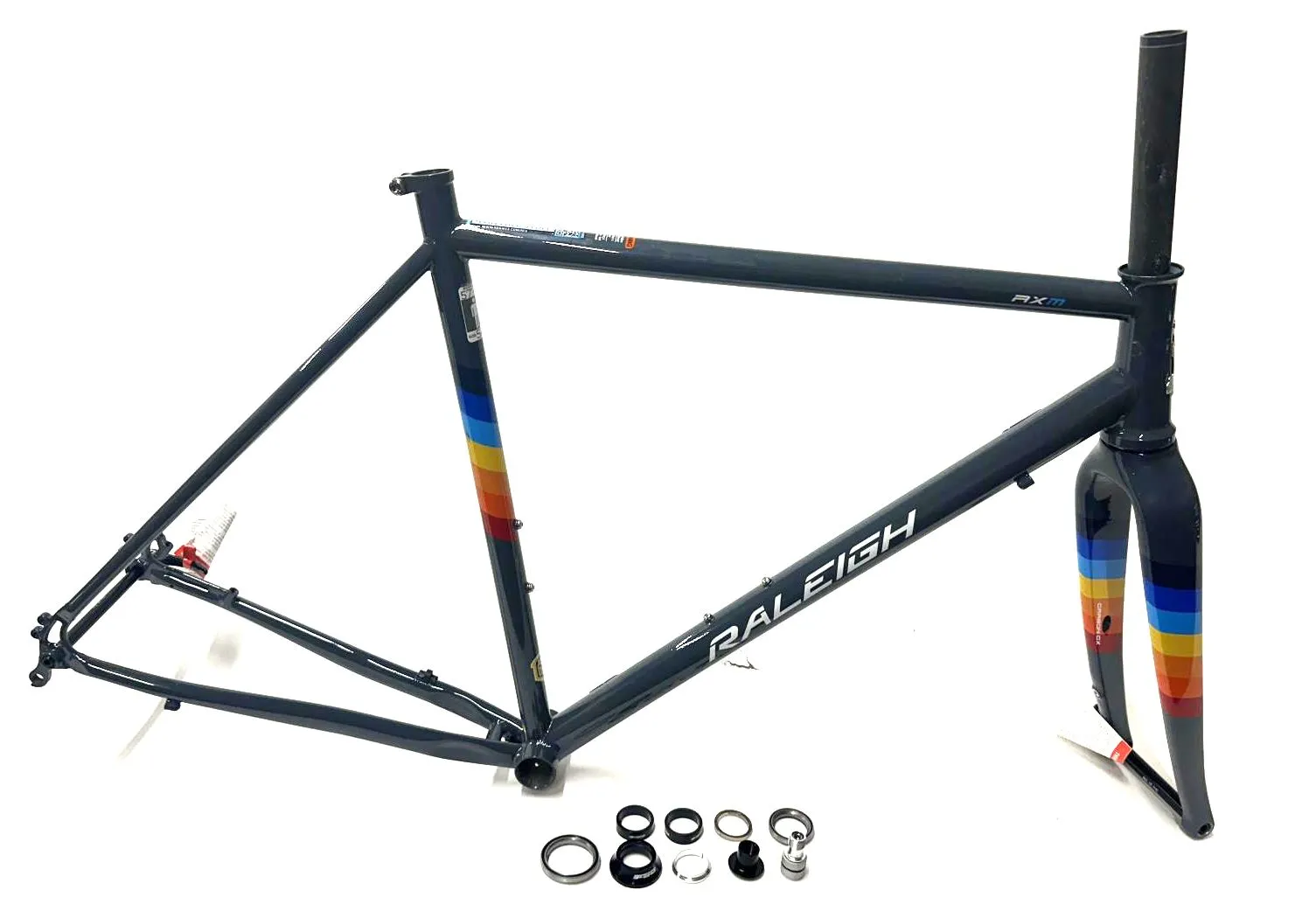

NOTE: PICTURE IS OF A 54CM FRAME (The one listed here is a 56cm) Weight will vary
