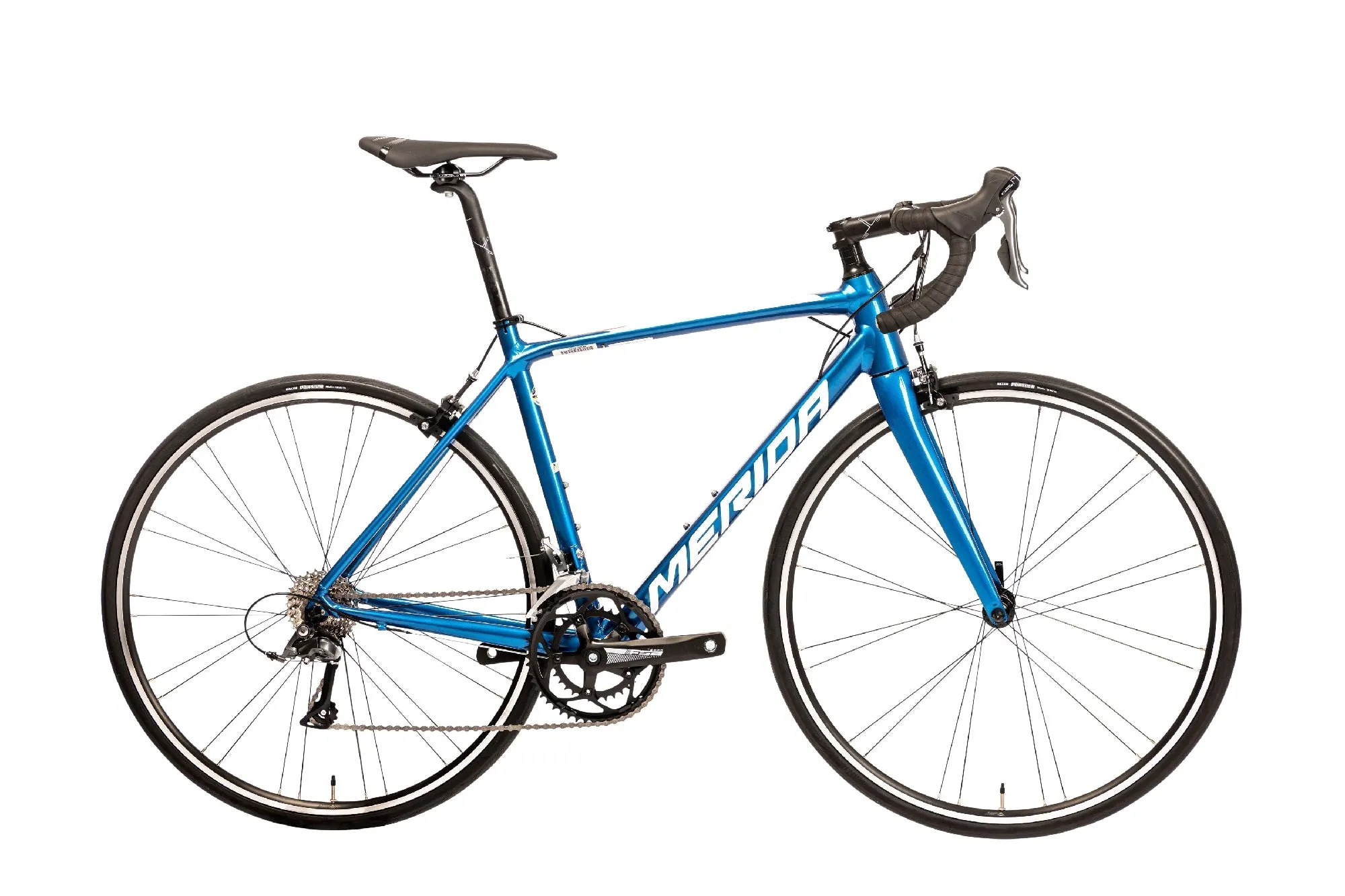

Merida Scultura 100 Rim. Start your cycling experience here! Please note - specifications subject to change without prior notice. 01. FRAME SCULTURA RIM lite-BSA 02. SIZES XXS-XS-S-SM 03. FORK SCULTURA RIM CF2 04. GEARS 2 x 8 05. CRANKSET FSA Tempo; 50-34 ATC 06. CRANK LENGTH 165 mm-4S/3S/XXS, 170 mm-XS/S, 172.5 mm-SM/ML, 175 mm-L/XL 07. BOTTOM BRACKET FSA TH-7420ST, Cartridge Bearing 08. CASSETTE Sunrace CS8; 11-28 ATC; 8 Speed 09. CHAIN Sunrace CN-M84 10. FRONT DERAILLEUR Shimano Claris 11. REAR DERAILLEUR Shimano Claris; GS 12. SHIFTERS Shimano Claris 13. BRAKE LEVERS Shimano Claris 14. BRAKES Lee Chi ROAD Dual Pivot 15. ROTORS - 16. HANDLEBAR MERIDA Expert SL 17. HANDLEBAR STEM MERIDA Comp CC; 31.8 Diameter; -6 Angle 18. STEM LENGTH 70 mm-4S/3S, 80 mm-XXS/XS, 90 mm-S, 100 mm-SM/ML, 110 mm-L/XL 19. HEADSET MERIDA M2341 Neck 20. SEAT POST MERIDA Comp CC; 27.2 Diameter; 12 Setback 21. SADDLE MERIDA COMP SL; V-mount 22. HUB-FRONT Road seal bearing; 100x9 WHF; 24 Spokes 23. HUB-REAR Road seal bearing; 130x9 WHR; 28 Spokes 24. AXLE-FRONT QR 25. AXLE-REAR QR 26. SPOKES Black stainless 27. RIMS MERIDA Comp SL; 17 IWR; 20 HRI 28. TYRES Maxxis Pursuer; 700x25C; fold 29. MAX RIDER WEIGHT 120kg
